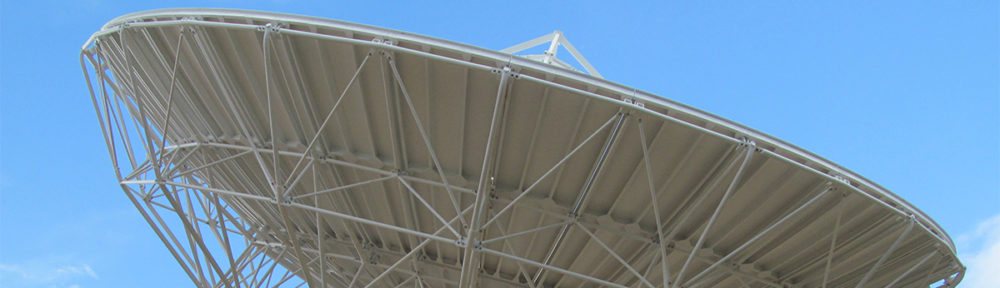

16M Rx Only Antenna
Detailed Product Description
1) The reflectors has dual panel
2) The stretch-forming major reflector is of high precision and is made of aluminum
3) Bands available include C-band, KU-band, S-band and L-band.
4) Both linear polarization and circular polarization are available
5) No field alignment request
6) Feed source system and some component parts are installed in the factory to reduce installation time.
7) Excellent in anti-corrosion
8) Survives 125 mph winds
9)Tailored product
| Antenna | 16m Rx only antenna | |
| C-BAND | Ku-BAND | |
| Frequency | 3.4-4.2 | 10.95-12.75 |
| Isolation | 35dB | |
| Insertion Loss | 0.25/0.3dB | 0.3/0.40dB |
| VSWR | 1.25:1 | |
| -3dB Beamwidth | 0.32° | 0.107° |
| Sidelobe Level | 29-25 lgθ | |
| 1°≤θ≤20° | ||
| First Sidelobe | ≤-14dB | |
| Gain | 54.21dB | 63.71dB |
| Operational Winds | 45mi/h(72km/h)gusts to 60mi/h(97km/h) | |
| Survival Winds | 125mi/h(200km/h) | |
| Ambient Temperature | -45~50°C | |
| Antenna Optics | Dual reflector antenna | |
| Azimuth Travel | 0-360° Continuous Adjustment(detach into three grade) | |
| Elevation Travel | 0°to 90° | |
| Surface Accuracy | 0.5mm(R.M.S) | |
| Relative humidity | 0%~100% | |
| Seismic(survival) | 0.3Gs horizontal 0.15 Gs vertical | |
